  • Metal Working Fluid Management Equipment






    Refractometer






    Digital Refractometer


    Model : ATAGO MASTER-20M


    Application:

    -Check dilution of water soluble metal working fluids (%Brix)


    Specifications:

    -Brand: ATAGO, Made in  Japan
    -Measurement Range: Brix : 0.0 to 20.0%
     Minimum Scale: Brix : 0.1%
    -Dimensions & Weight: 3.2×3.4×20.7cm, 165g



    Model : MA871 Digital Brix Refractometer


    Application:

    -Check dilution of water soluble metal working fluids (%Brix)


    Specifications:

    -Measurement Range: Brix : 0.0 to 85.0%
    -Temperature ranges: 0-80 oC
    -Accuracy: Brix : +/-0.2%
    -Battery Type: 1x9V (AA), included,
    -Battery : Life 5,000 measurements
    -Stainless steel ring and flint glass prism
    -Automatically turns off after 3 minutes of non-use
    -Dimensions & Weight: 192×102×67 cm, 420 g







    pH Indicator Strips






    Hand Held pH Meter (pH Pen)


    Application:

    -Checking pH value of water soluble metal working fluids.


    Specifications:

    -Measurement Range: 5.0-10.0
     Minimum Scale: Brix : 0.5
    -100 Tests (strips) per box



    Model : PH100 ExStik pH Meter


    Application:

    -Checking pH value of water soluble metal working fluids.


    Specifications:

    -Water proof design (IP157) floats in water and protects the  meter in wet environment.
    -Simultaneous display of pH and Temperatures.
    -Data hold, auto power of and low battery indication.
    -Flat surface electrode measurement pH in liquids, semi- liquids and solids. No more electrode breakage or clogged junctions.
    -Memory records and recalls 15 sequentially tagged readings.
    -Include flat surface pH electrode, protective sensor cap, sample cup with cap, 4 3V CR-3032 batteries and 48” (1.2 m.) neckstrap.





    DosatronCoolant Auto Mixing Unit







    MIX -07 Coolant Auto Mixer


    Model : Dosatron D25RE10


    Application:

    -For automatically mixing water soluble metal working fluids with water.


    Specifications:

    -Control ranges : 3-10 %
    -Coolant flow rate: 10 L/h - 3m3/h
    -Operating pressures : 0.3-4.0 bars
    -Maximum viscosity of concentrate : 400 cSt at 20°C
    -Maximum vertical or horizontal suction of the concentrate :4 m.

    Model : MIX-07 Proportioner


    Application:

    -For automatically mixing water soluble metal working fluids with water.


    Specifications:

    -Main body: Metal constructed parts
    -Control ranges : 0-25 %
    -Coolant flow rate: 10-15 LPM @ 31 PSI
    -Minimum operating water pressure : 25 psi (1.7 bars)
    -Maximum viscosity of concentrate : 120 cSt at 40°C







    Vacuum Coolant Suction Pump (for Pail)






    Vacuum Liquid Transfer Pump (for Drum)


    Model: CleanVac


    Application:

    -For coolant suction from a coolant reservoir of CNC machines.
    -To remove tramp oils (contaminated oil), metal fines, dirt from coolant reservoirs of CNC machines.


    Specifications:

    -Main Unit : Deep drawing steel plate (SPCE)


    Standard accessories:

    -Suction hose (of oil resistance) ø32 mm x 2 m
    -Suction Nozzle (of aluminium)  ø32 mm x 30 cm.
    -Operated by compressed air. (air hose in not included).

    Model: PUMP-650


    Application:

    -For coolant suction from a coolant reservoir of CNC machines.
    -To remove tramp oils (contaminated oil), metal fines, dirt from coolant reservoirs of CNC machines.


    Specifications:

    -Bi-directional vacuum transfer pump (suction and pushing fluid out).
    -High suction power (fill or empty a drum in 2 minites).
    -Operated by compressed air (air hose included).
    -A set incudes: vacuum pump body, PVC hose, barrel cover connector, stainless steel extension tube, compressed air hose (10 meters)







    Tramp Oil Separator





    Oil Filtration Unit

    Model: TRAMP OIL SEPARATOR TS90A


    Application:

    -To clean the coolant by removing tramp oils (contaminated oil)from coolant reservoirs of CNC machines.


    Specifications:

    -Stainless steel tank
    -Coolant flow rate: 18.9 L/M
    -Air diaphragm pump
    -stainless steel floating skimmer.
    -The unit is attached with wheels, so it can be moved around the production area.

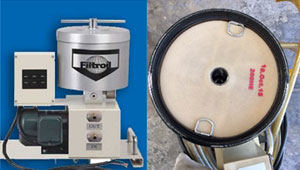

    Model: Filtroil Hydraulic Filtration Unit (Focus-1H)


    Application:

    -For removing fine particles and suspended water in new and used lubricants or neat cutting oils and rust preventive oils.


    Specifications:

    -Able to filter both contaminated particles and suspended water in oils.
    -Flow rate 3L/min.
    -Filter rating 0.1 micron
    -Dirt holding capacity 1.25 lbs.
    -Water holding capacity 24 Ozs.
    -Power supply 220V/1ph/50Hz
    -Complete with 3 M., suction and discharge hose
    -Include in filter element, 200E (0.1 micron)-
    -Oil (ISO) Cleanliness level 16/14/11 or better after filtering and remove the moisture down to 300 ppm.
